G13(B) Series 100W–300W LED Linear High Bay Tunnel Light

G13(B) LED linear high bay tunnel light with dual mounting brackets
G13(B) LED linear high bay tunnel light with dual mounting brackets

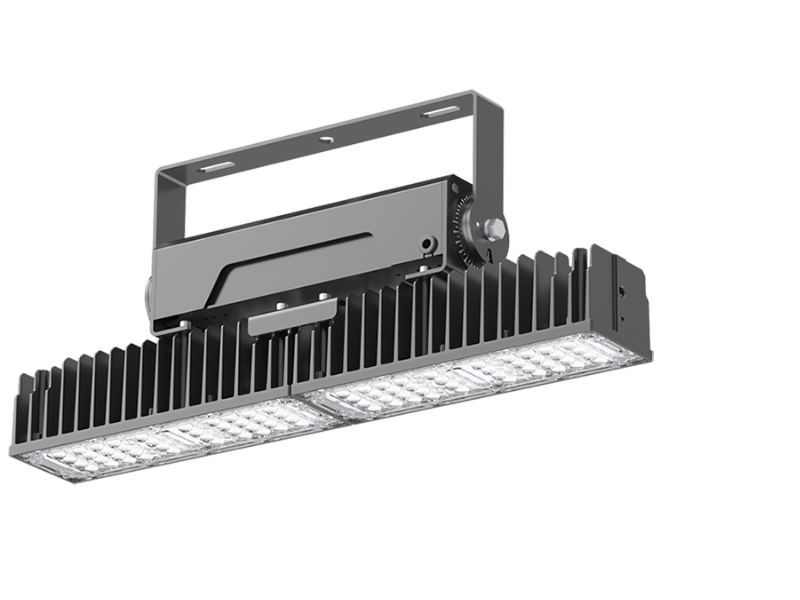

G13(B) 300W LED tunnel light with adjustable mounting bracket
G13(B) LED linear high bay tunnel light with dual mounting bracketsG13(B) 300W LED tunnel light with adjustable mounting bracket

Product Parameters

Product model：FL-06-G13(B)

LED Tunnel Light

150lm/W

100W/200W/300W

60°/90°/80*150°

IP66 Water-proof

Scale mark for accurate installation calibration

Electrophoresis coat + Outdoor Powder Paint

Rapid heat dissipation, apply ADC12 die-casting Aluminium

Compact,light weight,and exquisitely designed

Inquiry
WhatsappLinkedInFacebookYouTubeInstagramPinterestTwitter

Product Details

Specifications

Power: 100W/200W/300W Input Voltage: AC120~277V 50/60Hz
CRI: 70/80/90 Effi.: 150lm/W
Beam Angle: 20°/40°/60° PF.: >0.9
CCT: 3000K/4000K/5000K/5700K Warranty: 5 Years Warranty
Operating Temp: -40℃~+50℃ Storage Temp: -40℃~+80℃
Impact Resistance Rating: IK10 Water-proof: IP66
Lifespan: >50,000H Weight: 2.05kg(4.08lbs)

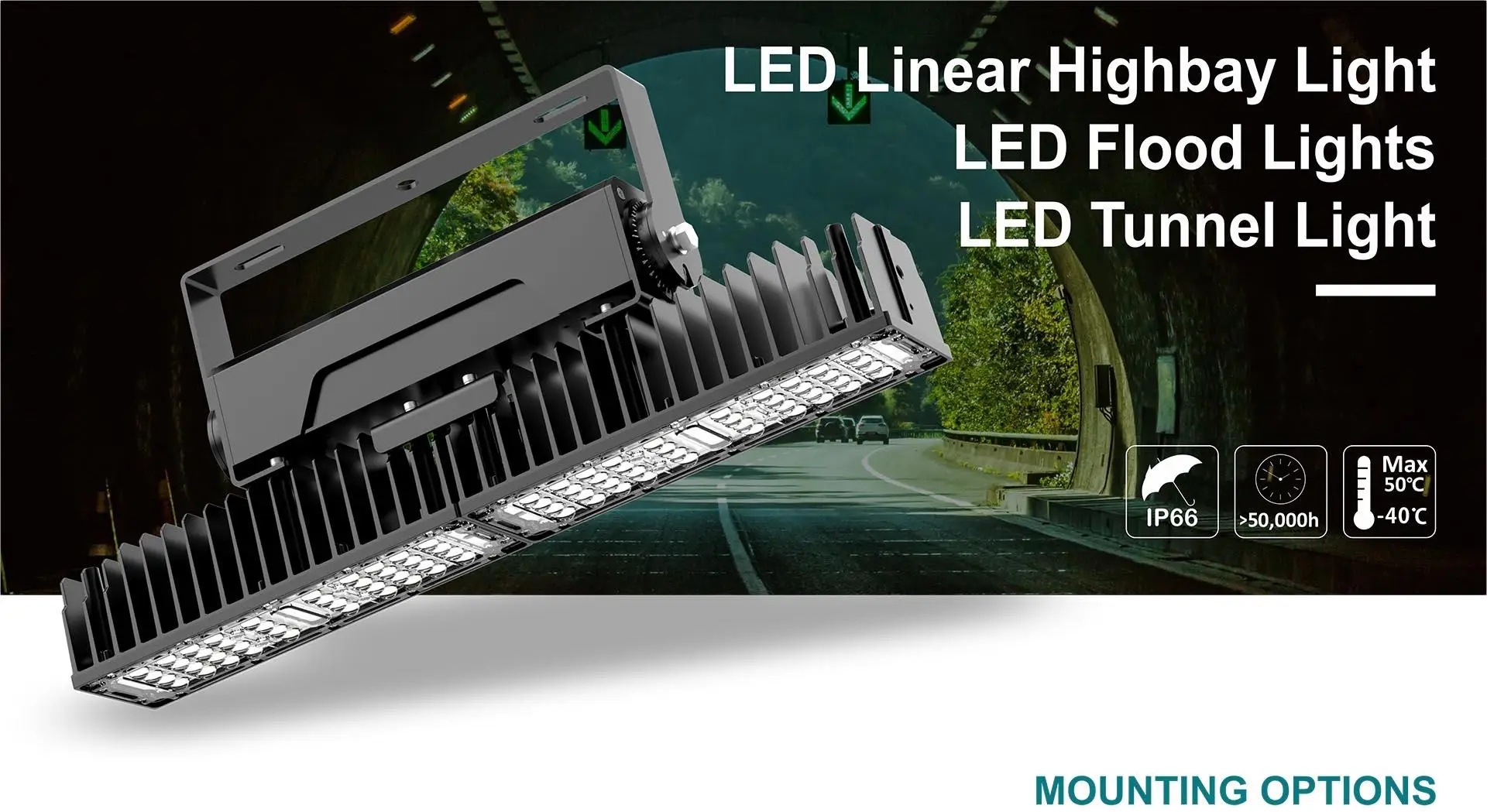

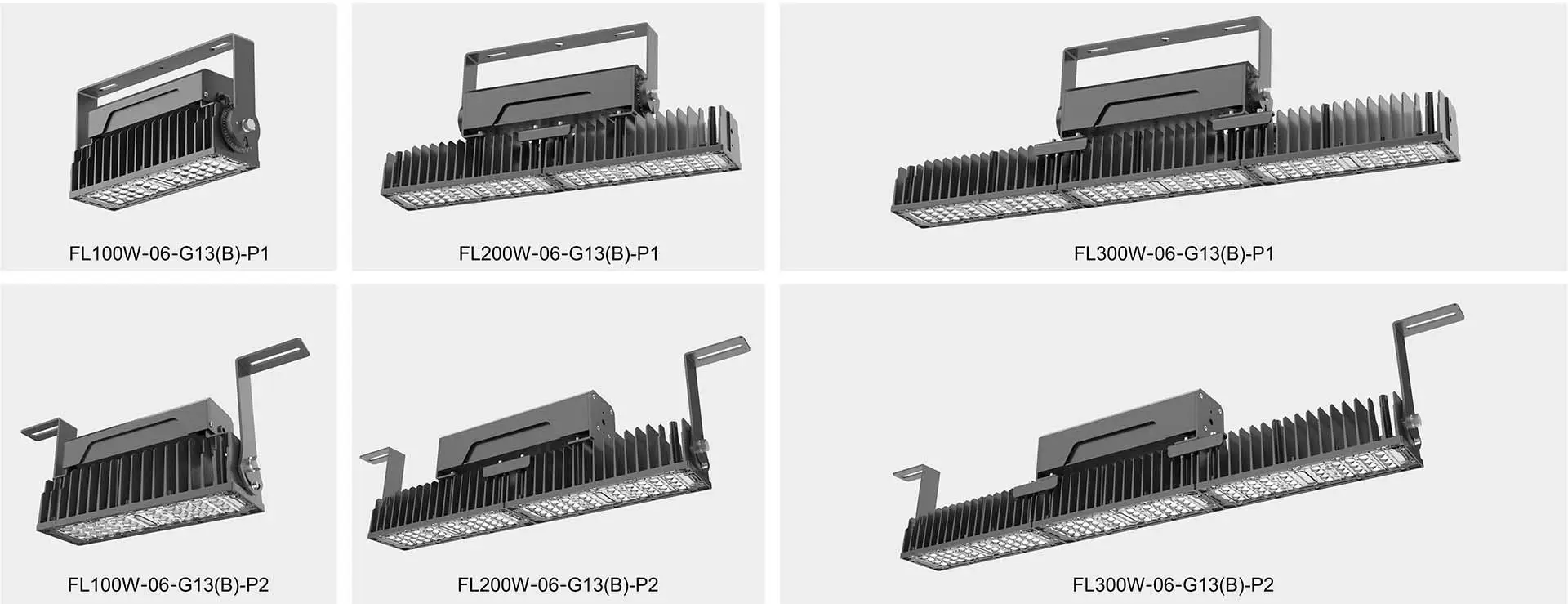

G13(B) IP66 LED linear high bay tunnel light for roadway tunnelsG13(B) 100W 200W and 300W LED tunnel light mounting options
