G4‑series high‑power LED explosion‑proof flood light meets Class I/II/III Division standards and supports ATEX Zone 1/2/21/22 hazardous‑area deployment. It is widely applied for offshore oil‑gas platforms, refineries and large‑scale petrochemical sites.

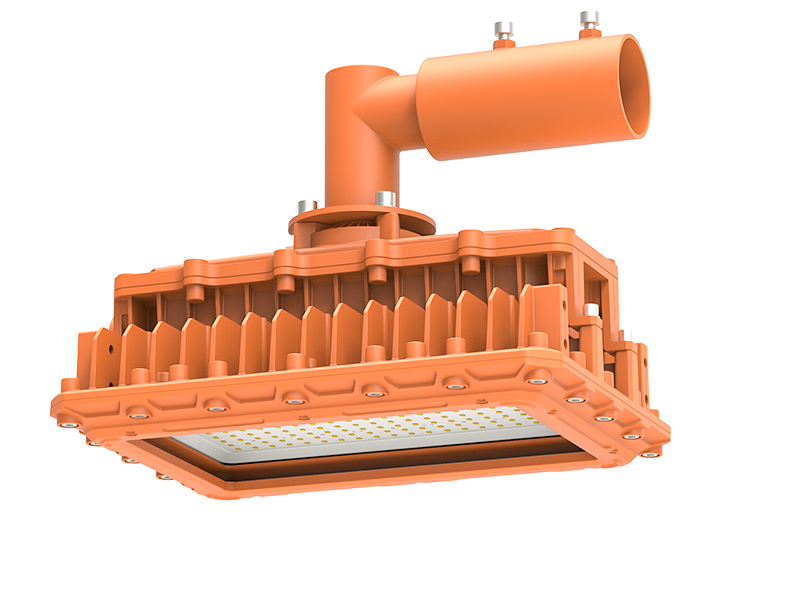

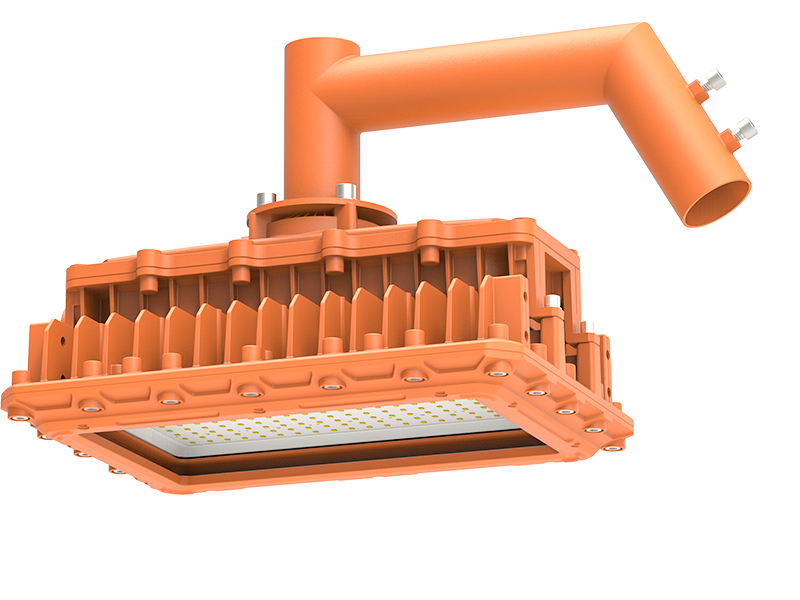

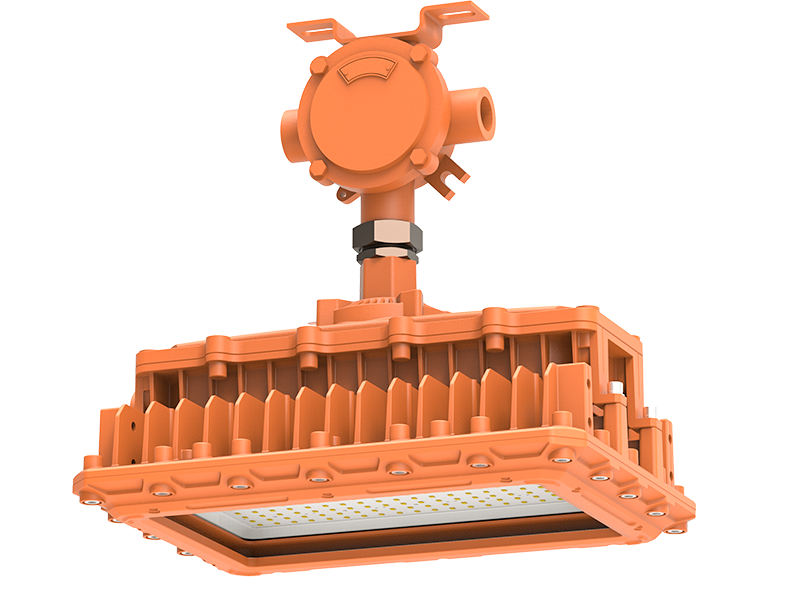

Built with Ex‑d flame‑proof protection, this fixture features SUS 304 all‑metal connectors and over 10 mm wide explosion‑proof joint surface. The 10 mm thick tempered glass withstands 20‑Joule impact damage. Equipped with two ¾‑inch NPT wiring holes and adjustable rotating bracket, it supports pole‑mount and ceiling‑mount installation flexibly.
Delivering 140 lm/W high efficiency, power options cover 30W‑1000W. Rated IP66 waterproof and IK10 impact resistance, it works reliably under harsh coastal and industrial conditions, with over 50,000‑hour lifespan and 5‑year warranty. When selecting explosion‑proof lighting, you must confirm zone classification, gas‑dust group and temperature class for your site. Read our hazardous‑area ATEX certification guide to sort out core compliance requirements.
Please share your hazardous‑area lighting requirements with our engineering team, we can provide professional product recommendations and technical support.
Specifications
| Power: 30W/50W/60W/80W/100W/120W/150W/180W/200W/240W/400W/500W/800W/1000W | |
| Input Voltage: AC120~277V 50/60Hz | Housing Color: Grey/Orange |
| CRI: >80 | Effi.: 140lm/W |
| Beam Angle: 30°/60°/90°/120° | PF.: >0.9 |
| CCT: 3000K/4000K/5000K/5700K | Warranty: 5 Years Warranty |
| Impact Resistance Rating: IK10 | Water-proof: IP66 |
| Lifespan: >50,000H | Weight: 6.65kg(14.66Ibs) |
