G22 Series 60W–300W Flip-Top LED Street Light

G22 Series 300W flip-top LED street light front view

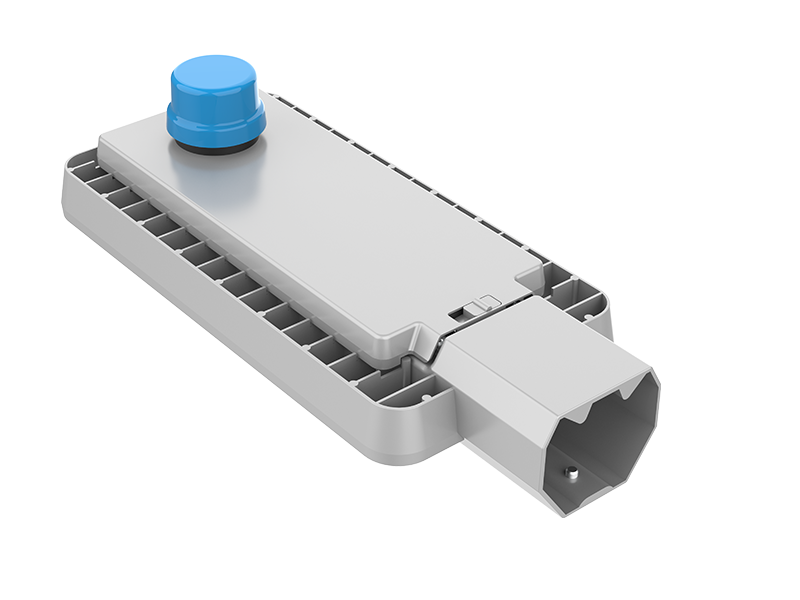

22 smart LED street light with photocell sensor

Product Parameters

Product model：PL-01-G22

60W/80W/100W/150W/200W/300W

140lm/W

150*70°

Flip-top design LED street light

IK10 Anti-UV PC Lens > 95% Light Transmission

10KV/20KV SPD

ON/OFF / Timing Dimming / 0-10V Dimmable / Zigbee / LoRa / DALl

Inquiry

Product Details

Specifications

Power: 60W/80W/100W/150W/200W/300W	Input Voltage: AC120~277V 50/60Hz
CRI: 70/80/90	Effi.: 140lm/W
Beam Angle: 150*70°	PF.: >0.9
CCT: 3000K/4000K/5000K/5700K	Warranty: 5 Years Warranty
Operating Temp: -40℃~+50℃	Storage Temp: -40℃~+80℃
Impact Resistance Rating: IK10	Water-proof: IP66
Lifespan: >50,000H	Weight: 3.1kg(6.90lbs)
Control Optional: ON/OFF / Timing Dimming / 0-10V Dimmable / Zigbee / LoRa / DALl

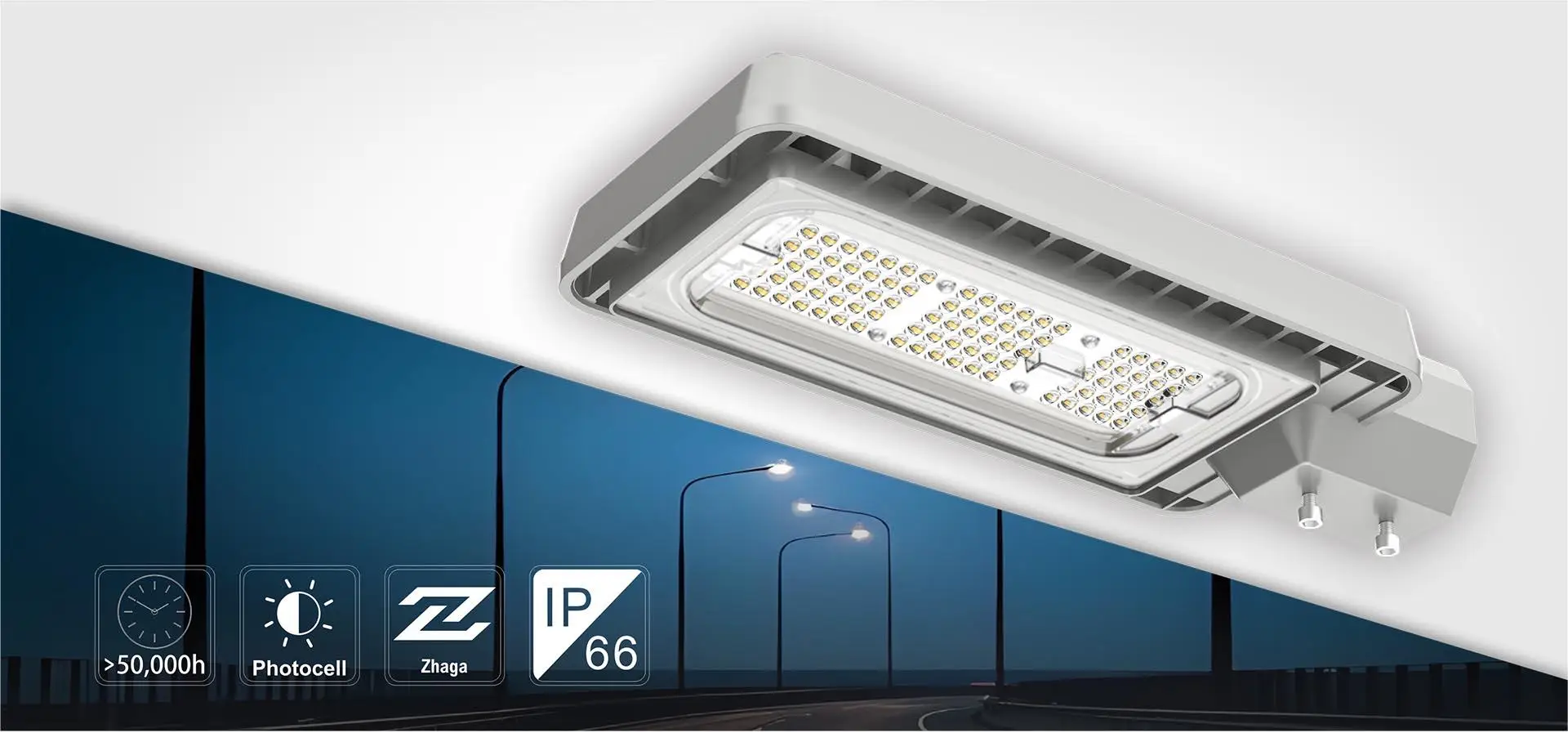

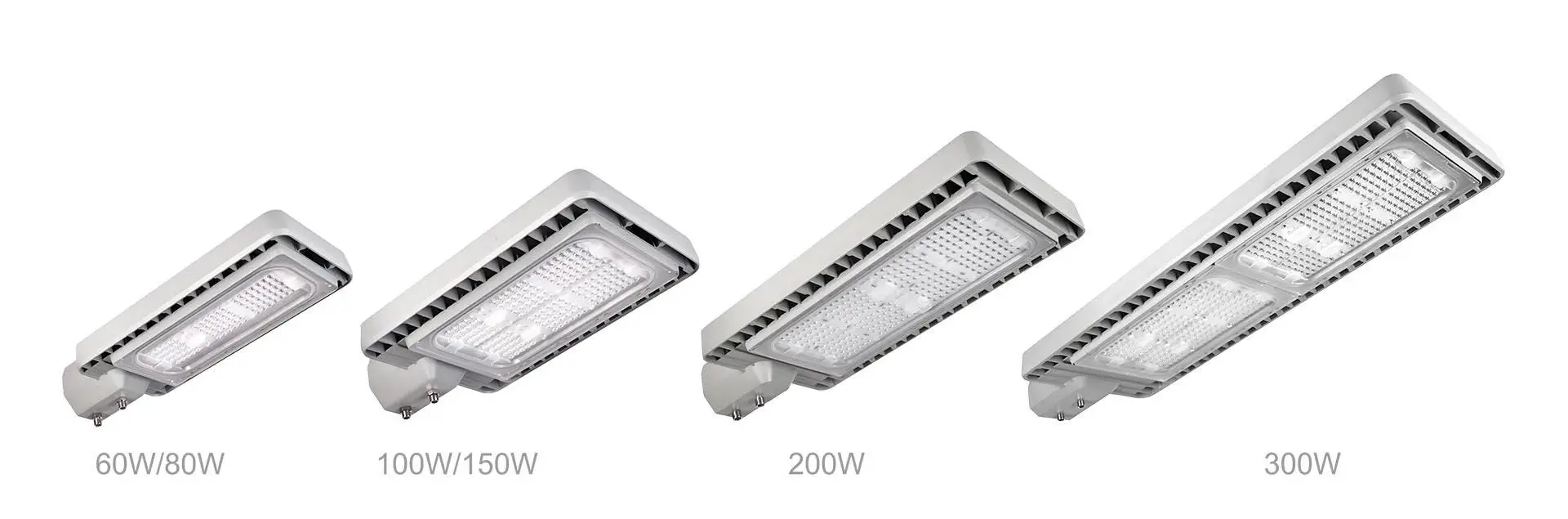

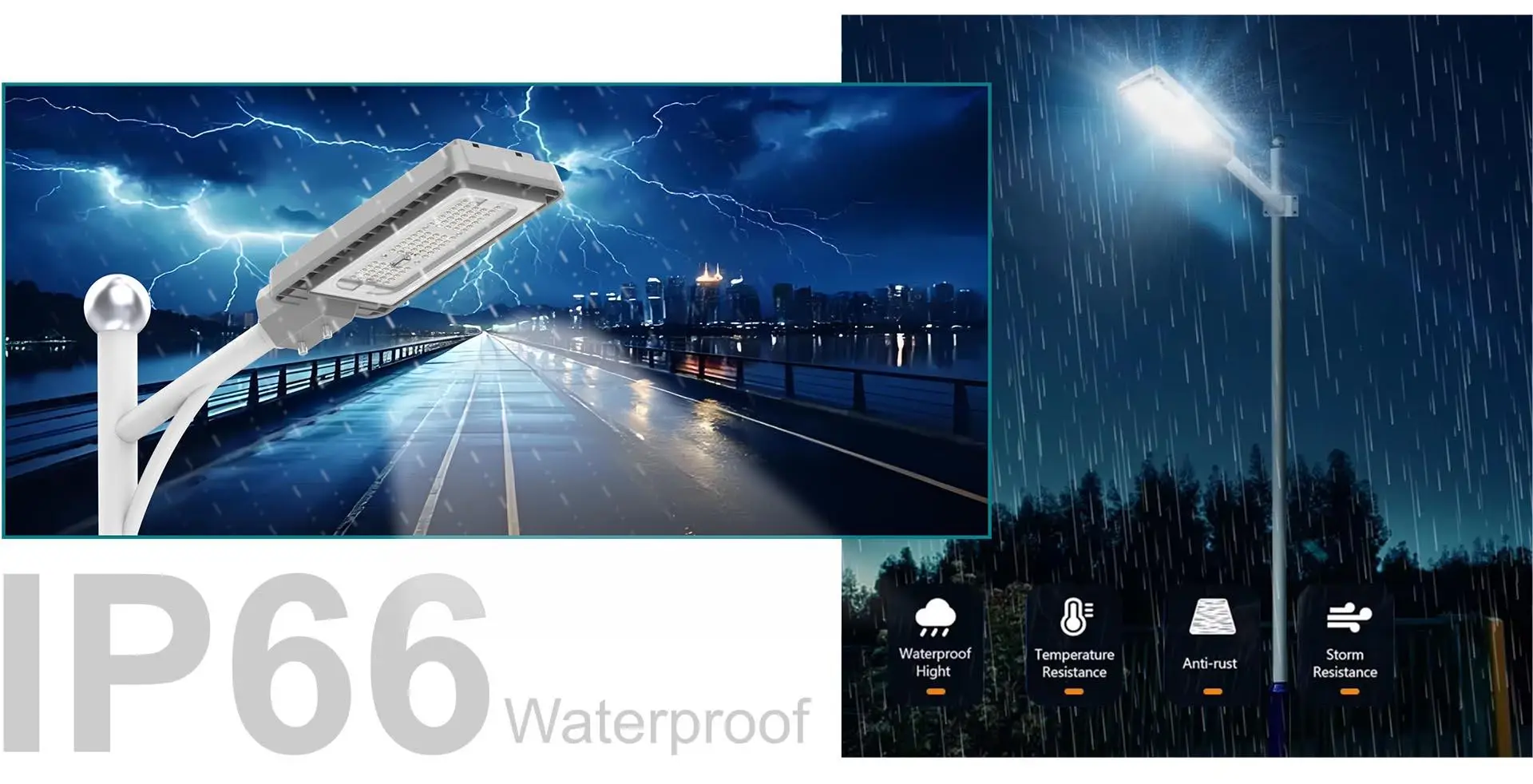

G22 IP66 smart LED street light with photocell and Zhaga socket G22 Series 60W to 300W LED street light size range G22 IP66 weatherproof LED street light for roads and highways
