G24 Series 60W–240W Flip-Top LED Street Light

G24 Series 240W flip-top LED street light with roadway lens

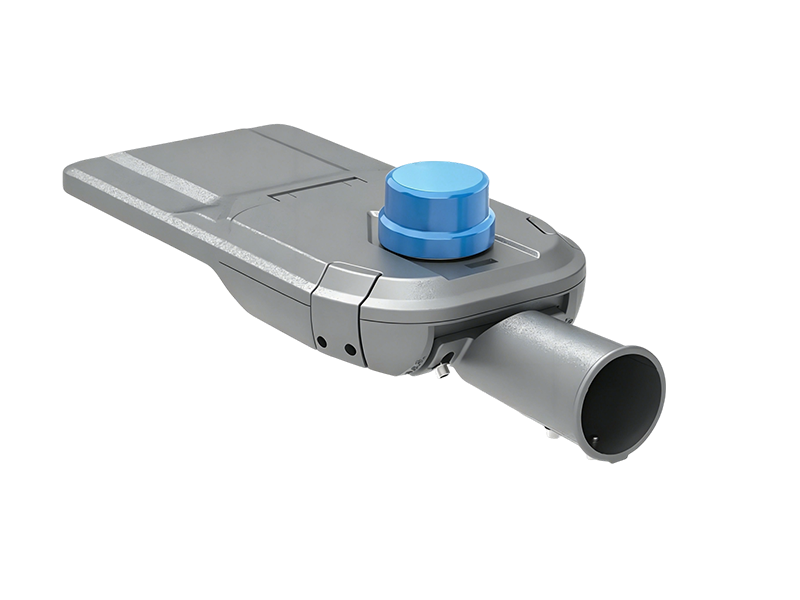

G24 smart LED street light with optional photocell controller

Product Parameters

Product model：PL-01-G24

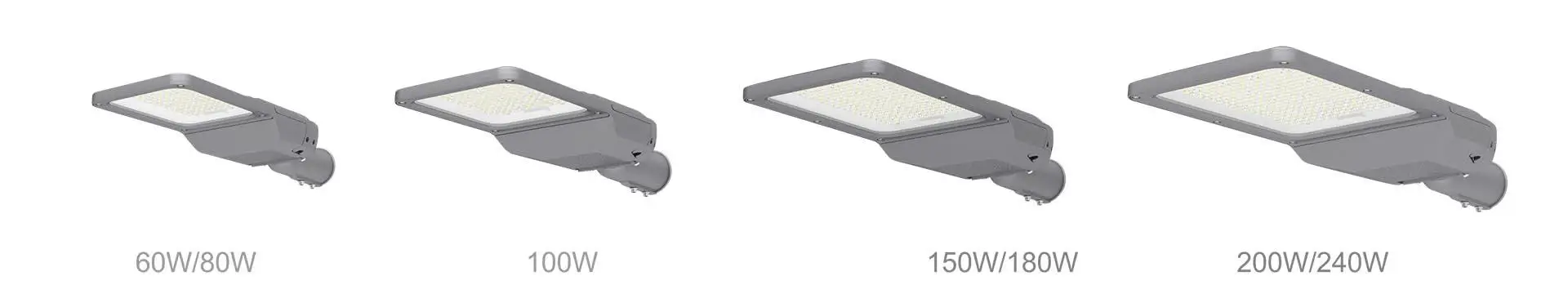

60W/80W/100W/150W/180W/200W/240W

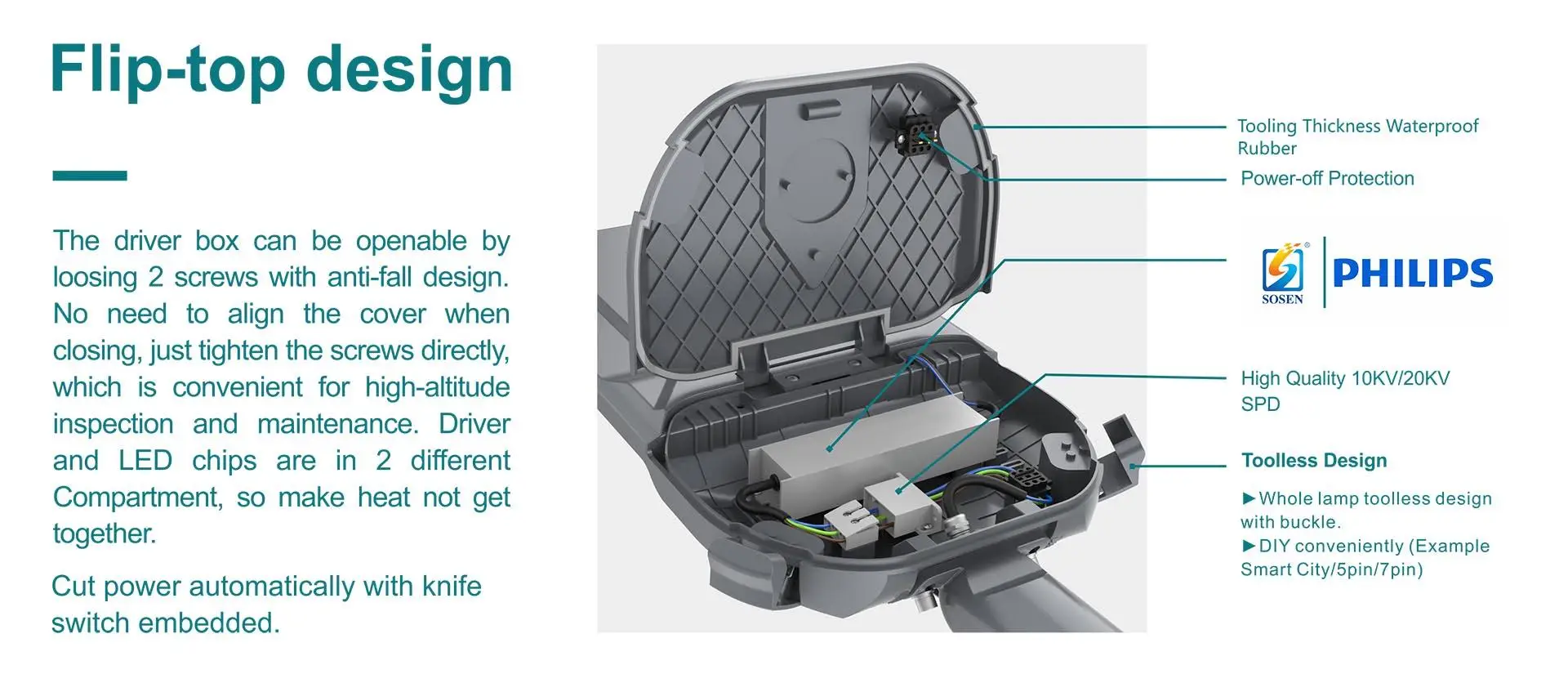

Flip-top design LED street light

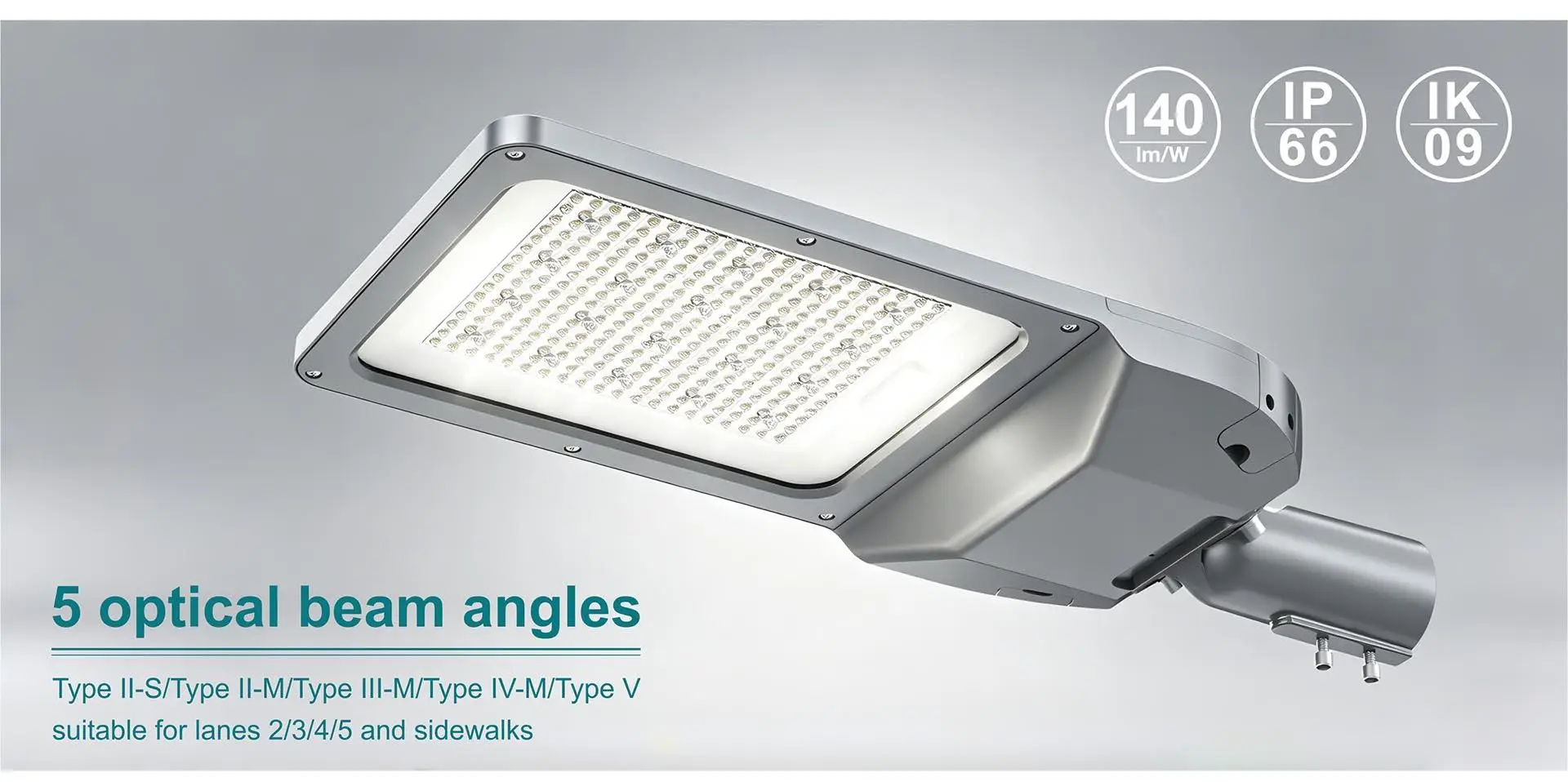

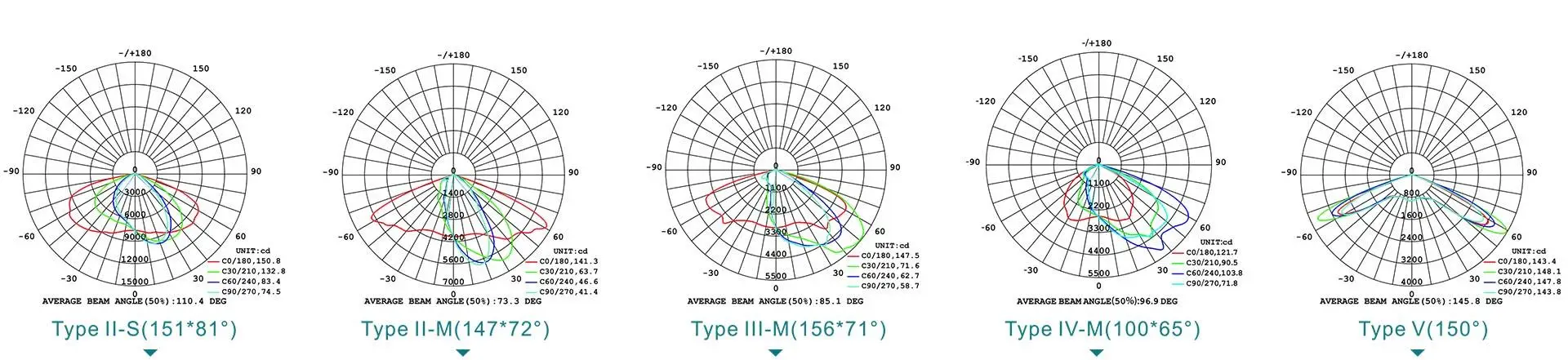

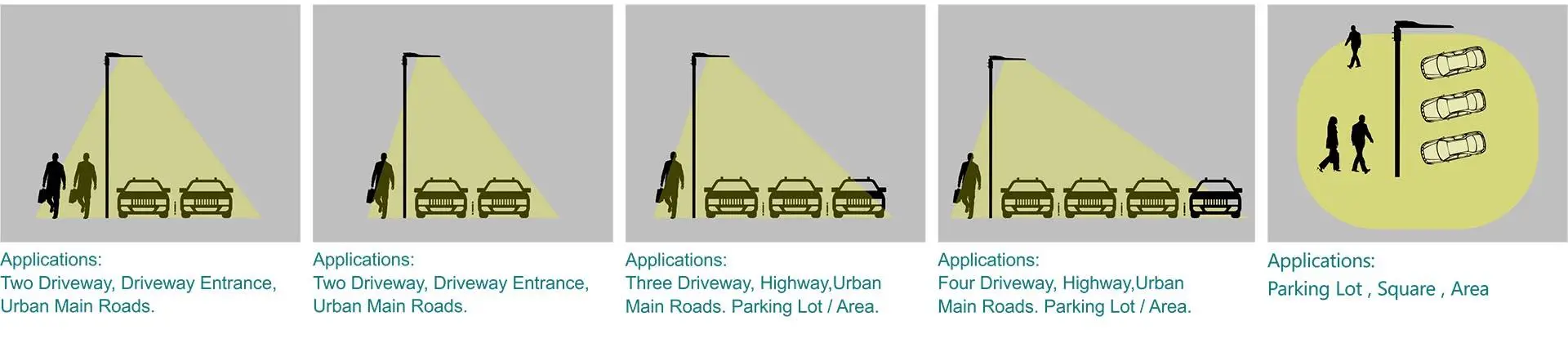

Type II-S(151*81°)/Type II-M(147*72°)/Type III-M(156*71°)/Type IV-M(100*65°)/Type V(150°)

Tempered glass with high Light Transmission

10KV/20KV SPD

ON/OFF / Timing Dimming / 0-10V Dimmable / Zigbee / LoRa / DALl

Inquiry

Product Details

Specifications

Power: 360W/80W/100W/150W/180W/200W/240W	Input Voltage: AC120~277V 50/60Hz
CRI: 70/80/90	Effi.: 140lm/W
Beam Angle: Type II-S/Type II-M/Type III-M/Type IV-M/ Type V	PF.: >0.9
CCT: 3000K/4000K/5000K/5700K	Warranty: 5 Years Warranty
Operating Temp: -40℃~+50℃	Storage Temp: -40℃~+80℃
Impact Resistance Rating: IK09	Water-proof: IP66
Lifespan: >50,000H	Weight: 2.4kg(5.30lbs)
Control Optional: ON/OFF / Timing Dimming / 0-10V Dimmable / Zigbee / LoRa / DALl

G24 Series LED street light models from 60W to 240W G24 140 lm/W IP66 LED street light with five optical distributions G24 LED street light Type II Type III Type IV and Type V photometric curves G24 LED street light beam patterns for roads sidewalks and parking areas G24 IP66 waterproof LED street light for severe outdoor weather G24 flip-top LED street light driver box with 20kV surge protection
