Product Parameters

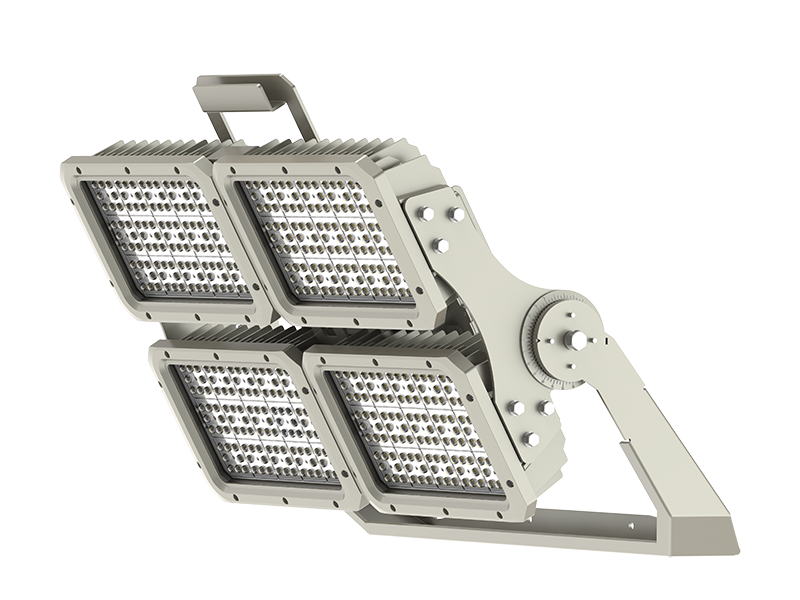

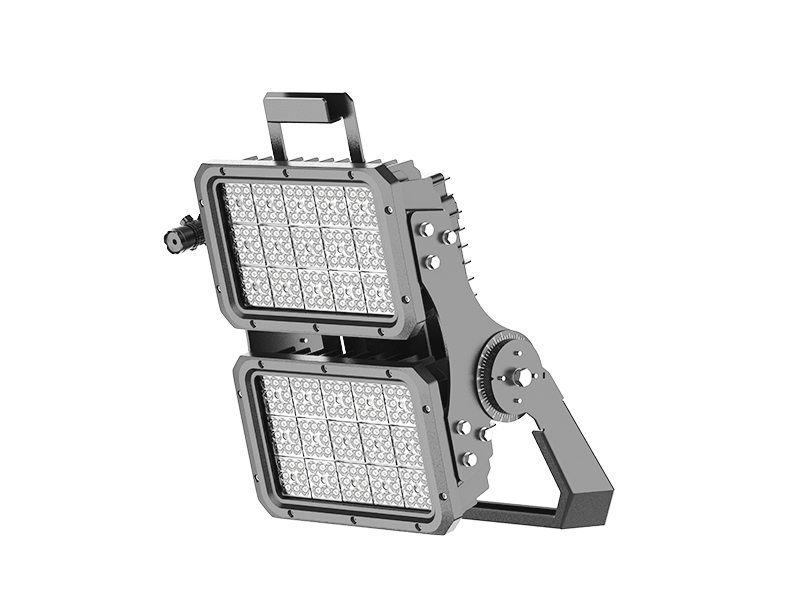

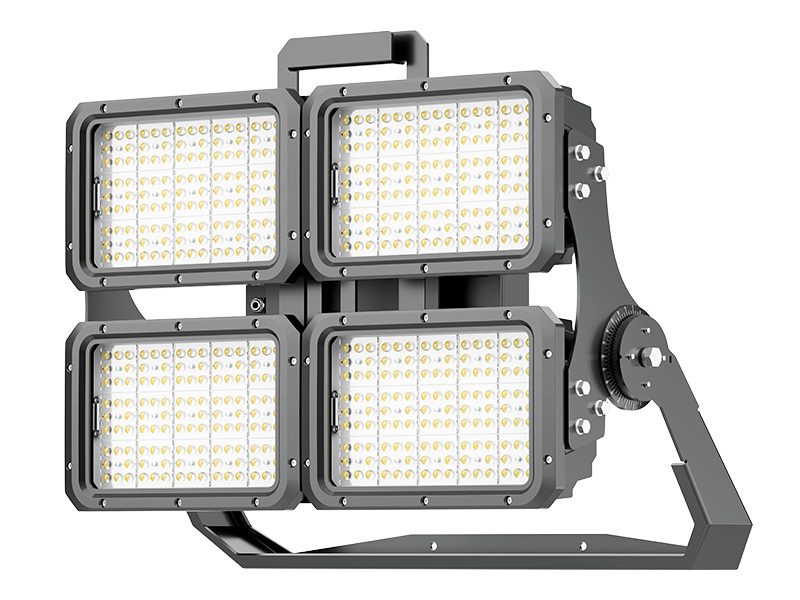

Product model:FL-07-G12

300W / Module

10°/15°/30°/60°/90°/T2(117*34°)

Private mould, special and unique structure.

High light transmittance, Stronger lk09 Protection

Anti-glare Design, High uniform light distribution

10KV/20KV SPD

Scale mark for accurate installation calibration

Electrophoresis coat + Outdoor Powder Paint

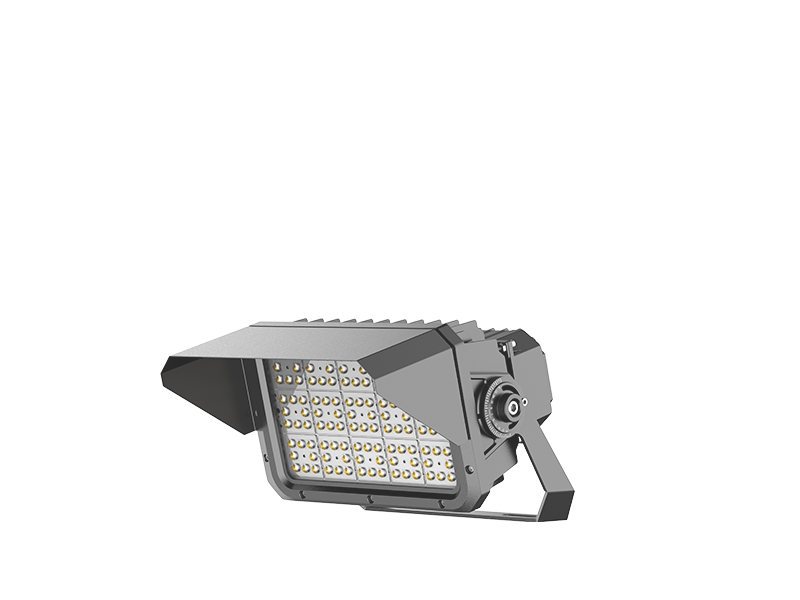

The visor is designed to trim the excess upward
light for excellent spill light control and glare limitation

Inquiry

Product Details

Description

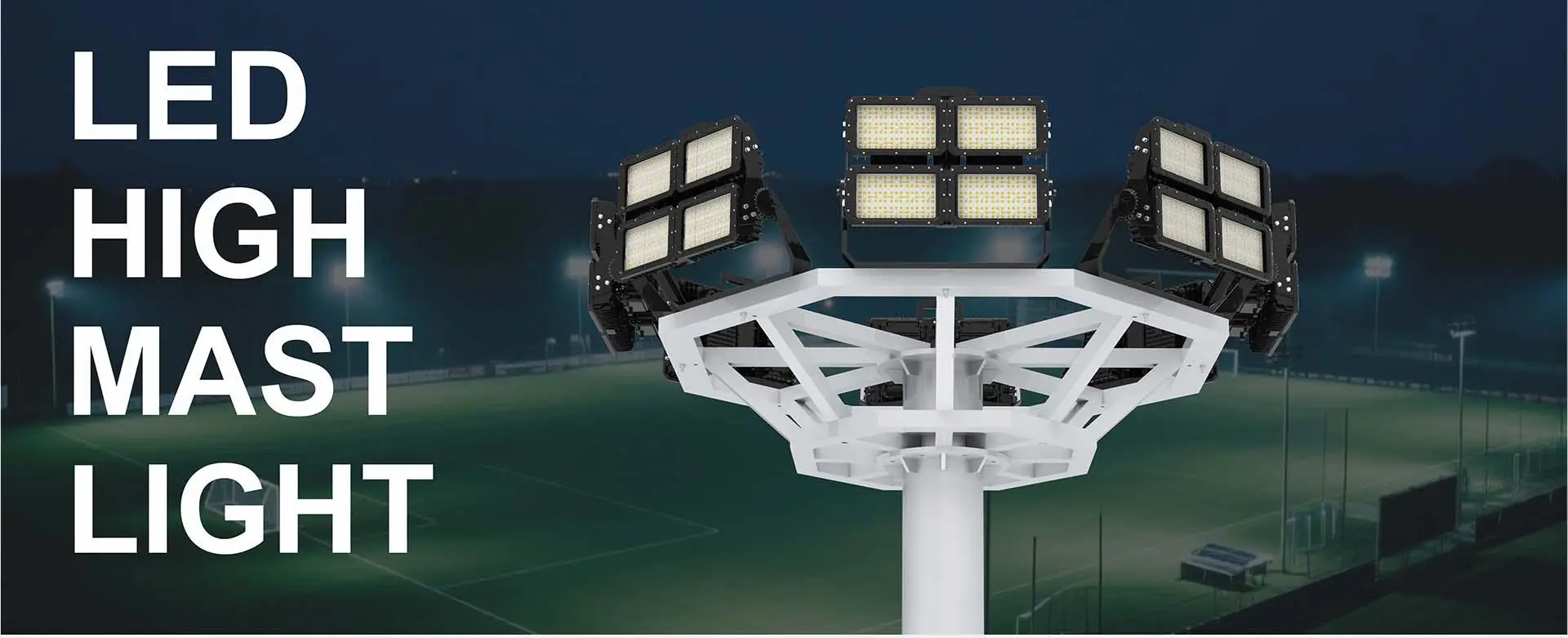

This high-output, high-efficiency professional industrial-grade area floodlight offers 200W-1200W and beam angles of 10°/15°/30°/60°/90° and an asymmetrical 117*34°, providing sufficient flexibility to meet the needs of any application and tower height. Optional anti-glare shades/glare shields help reduce light spillage in residential or stadium areas, thereby improving the comfort of residents and spectators.

Specifications

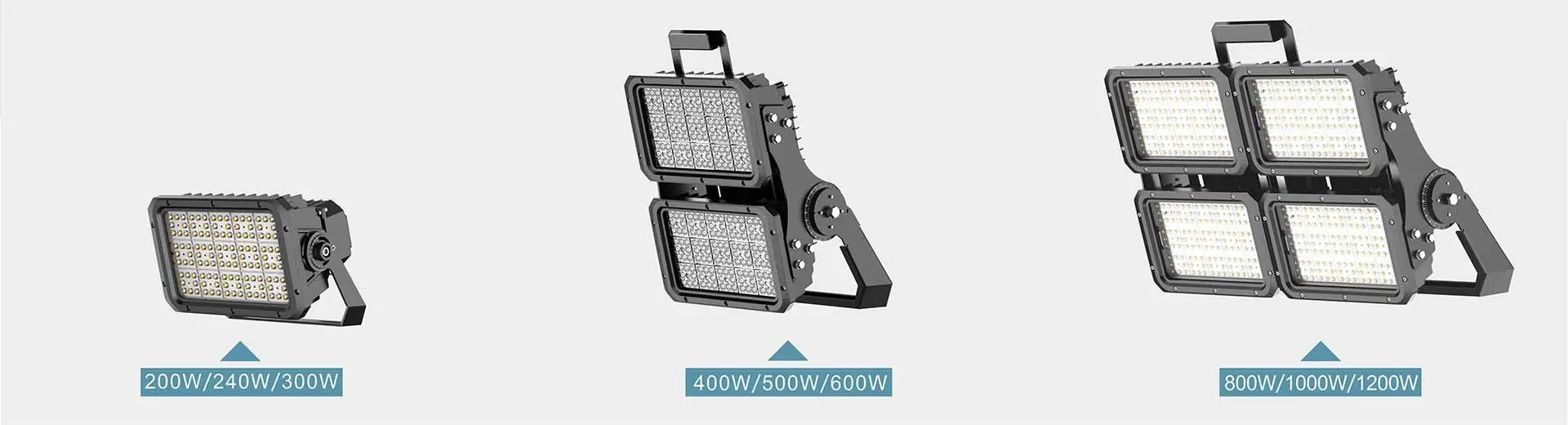

Power: 200W/240W/300W/400W/500W/600W/800W/1000W/1200W Input Voltage: AC120~277V/277~480V 50/60Hz
Beam Angle: 10°/15°/30°/60°/90°/T2(117*34°) Effi.: 150Lm/W
CCT: 3000K/4000K/5000K/5700K PF.: >0.9
Impact Resistance Rating: IK09 CRI: 70/80/90
Operating Temp: -40℃~+50℃ Storage Temp: -40℃~+80℃
SPD: 10KV(Standard) / 20KV(Optional) Water-proof: IP66
Lifespan: >100,000H Warranty: 5 Years Warranty
Control Optional: ON/OFF / 0-10V / DALI / DMX 512 / ZigBee Weight: 6.20kg(13.7lbs)
