G23 1800W RGBW LED Stadium Light Features

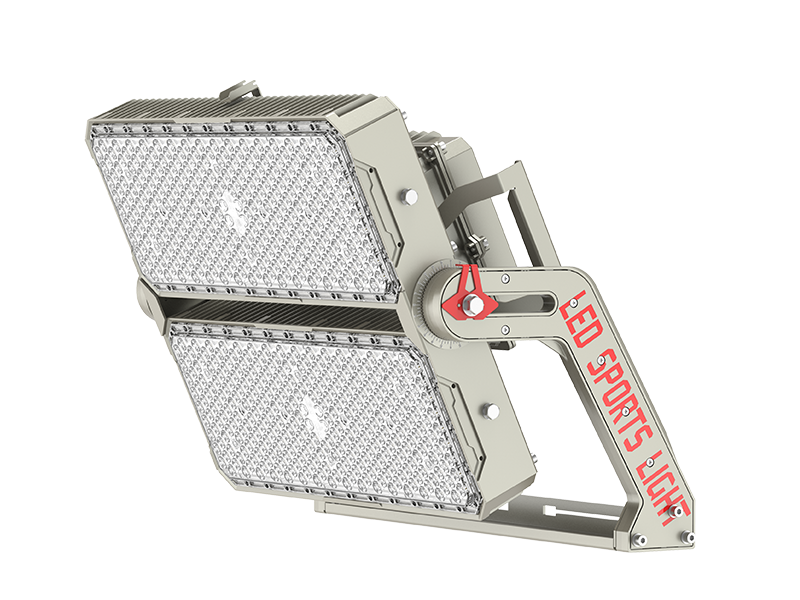

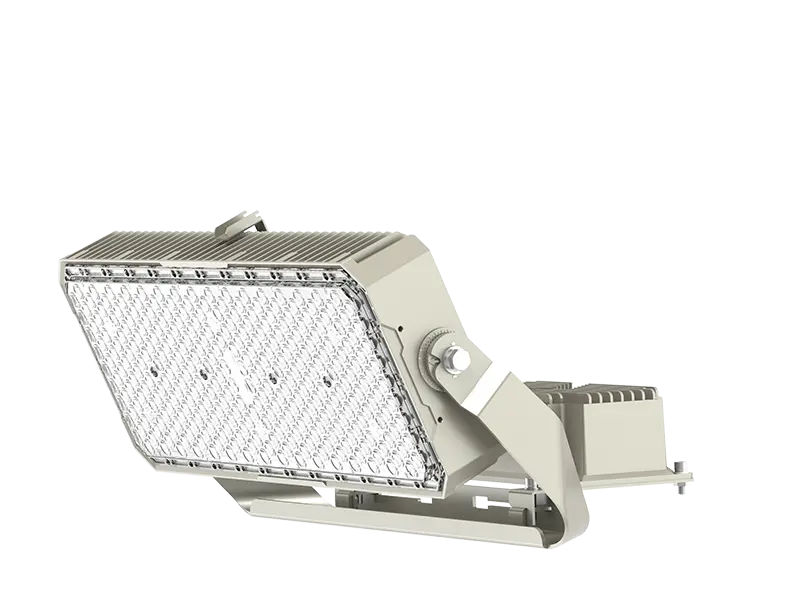

The ROKEE G23 1800W RGBW LED stadium light combines high-output white illumination with dynamic color-changing effects for professional sports and event venues. Available in 800W, 1000W, 1600W and 1800W configurations, its modular design helps reduce wind load and simplifies high-mast installation.
White-light configurations deliver luminous efficacy of up to 160 lm/W, subject to the selected LED package, power and optical configuration. Available beam angles include 10°, 15°, 30° and 60°, supporting football pitches, athletics fields, arenas and other large outdoor venues that require controlled, long-distance illumination.
The luminaire features an IP66 weatherproof enclosure, IK10 impact resistance and an anti-glare visor for improved spill-light and glare control. Standard 10 kV surge protection is included, with an optional 20 kV configuration available. The die-cast aluminum housing and outdoor-grade coating support reliable operation in demanding environments.

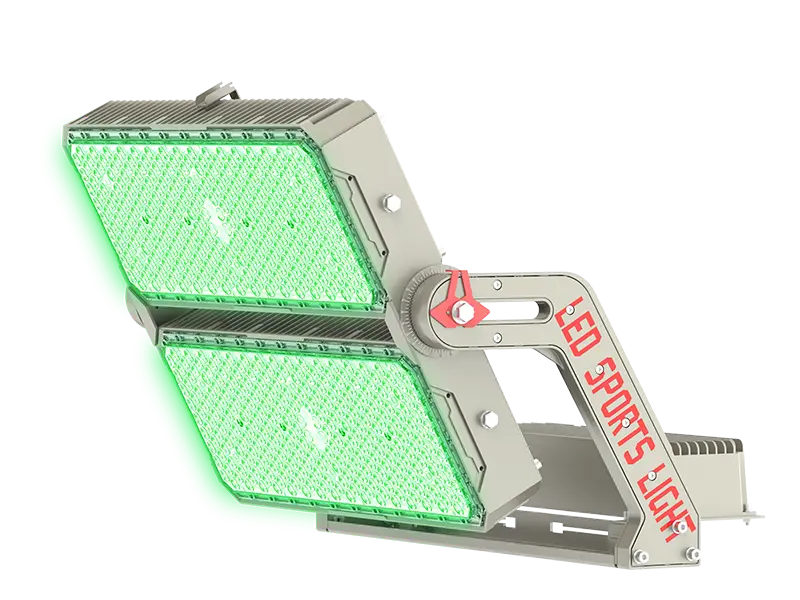

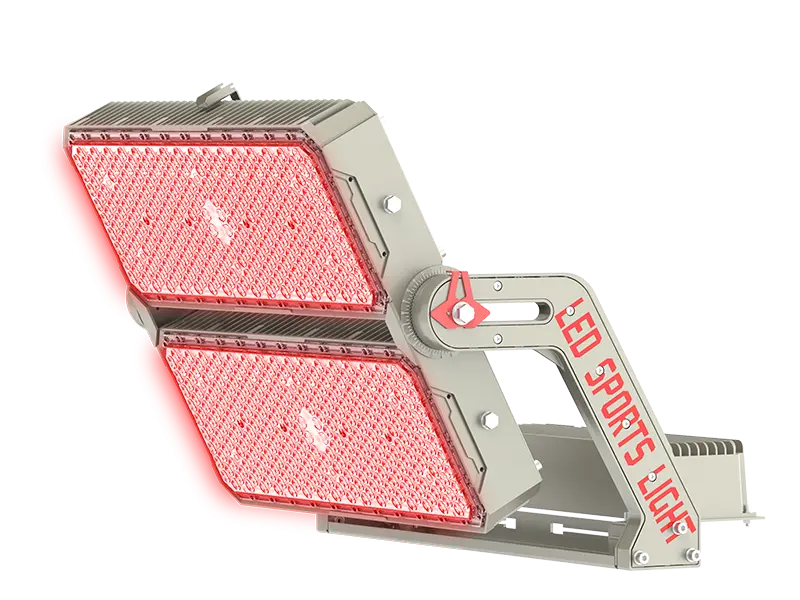

The RGBW version uses independent red, green, blue and white LED channels with DMX512/RDM control. It can provide functional white lighting for sports use and dynamic color effects for opening ceremonies, celebrations, concerts and other stadium events. Additional control options include ON/OFF, 0–10V, DALI and ZigBee.

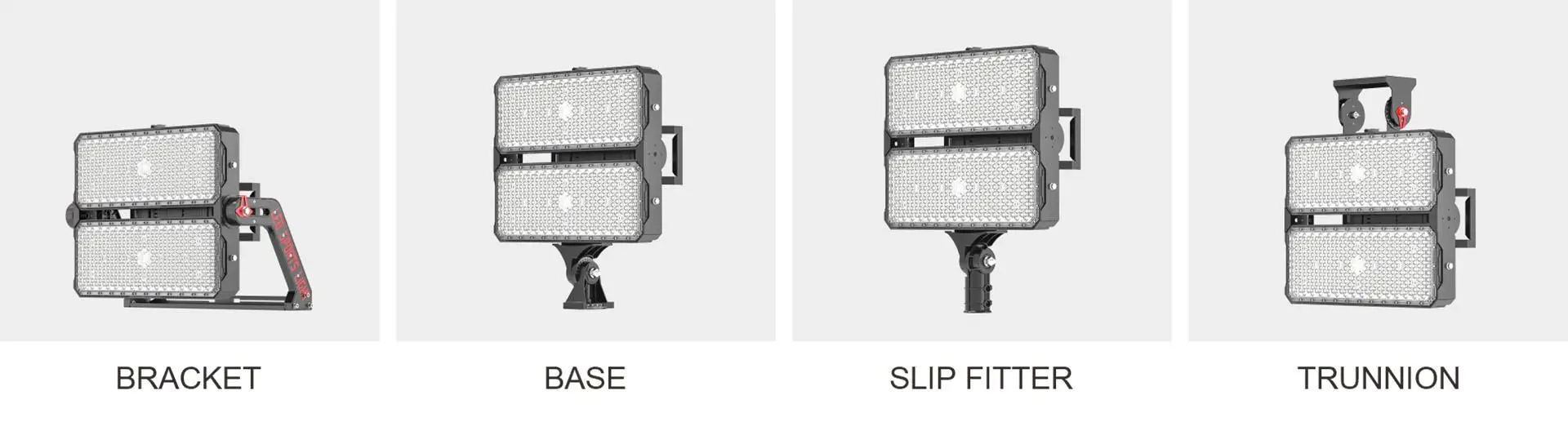

With an L70 rated lifetime of more than 100,000 hours, multiple mounting options and a five-year warranty, the G23 Series is suitable for multifunctional stadiums requiring both competition lighting and event illumination. Final performance should be confirmed through project-specific photometric calculations.
Specifications
| Power: 800W/1000W/1600W/1800W | Input Voltage: AC120~277V/277~480V 50/60Hz |
| Beam Angle: 10°/15°/30°/60° | Effi.: 160Lm/W |
| CCT: 3000K/4000K/5000K/5700K | PF.: >0.9 |
| Impact Resistance Rating: IK10 | CRI:70/80/90 |
| Operating Temp: -40℃~+50℃ | Storage Temp: -40℃~+80℃ |
| SPD: 10KV(Standard) / 20KV(Optional) | Water-proof: IP66 |
| Lifespan: >100,000H | Warranty: 5 Years Warranty |
| Control Optional: ON/OFF / 0-10V / DALI / DMX 512 / ZigBee | Weight: 18.00kg(39.68lbs) |

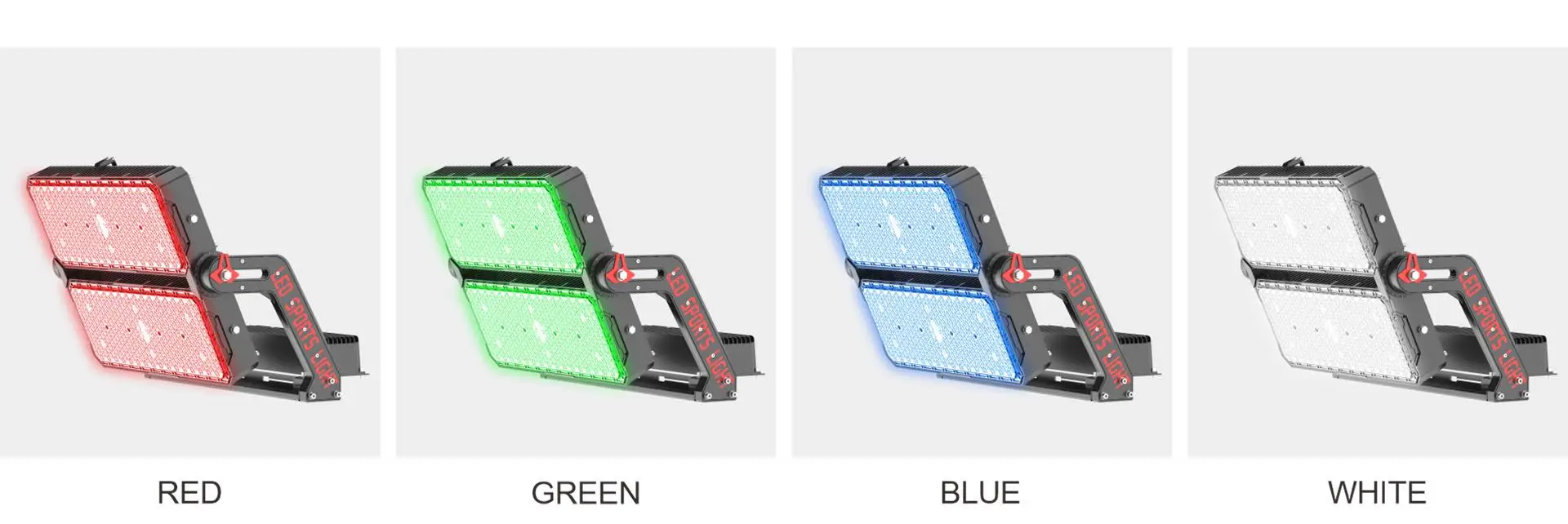

The G23 series is also available in RGBW version with Red/Green/Blue/White 4 LED channels, fully compatible with DMX RDM control system. It can output high-quality pure white lighting for standard sports matches, while supporting dynamic color-changing effects for stadium opening ceremonies, victory celebrations and large venue events. You can freely adjust colors and brightness via DMX touchscreen console to create immersive lighting scenes. Built with 10KV/20KV SPD surge protection, anti-glare visor, outdoor electrophoretic painting and outdoor powder coating, this RGBW sports floodlight maintains the same robust outdoor performance, perfectly suitable for multi-functional stadiums and arena projects requiring both competition lighting and event color lighting.

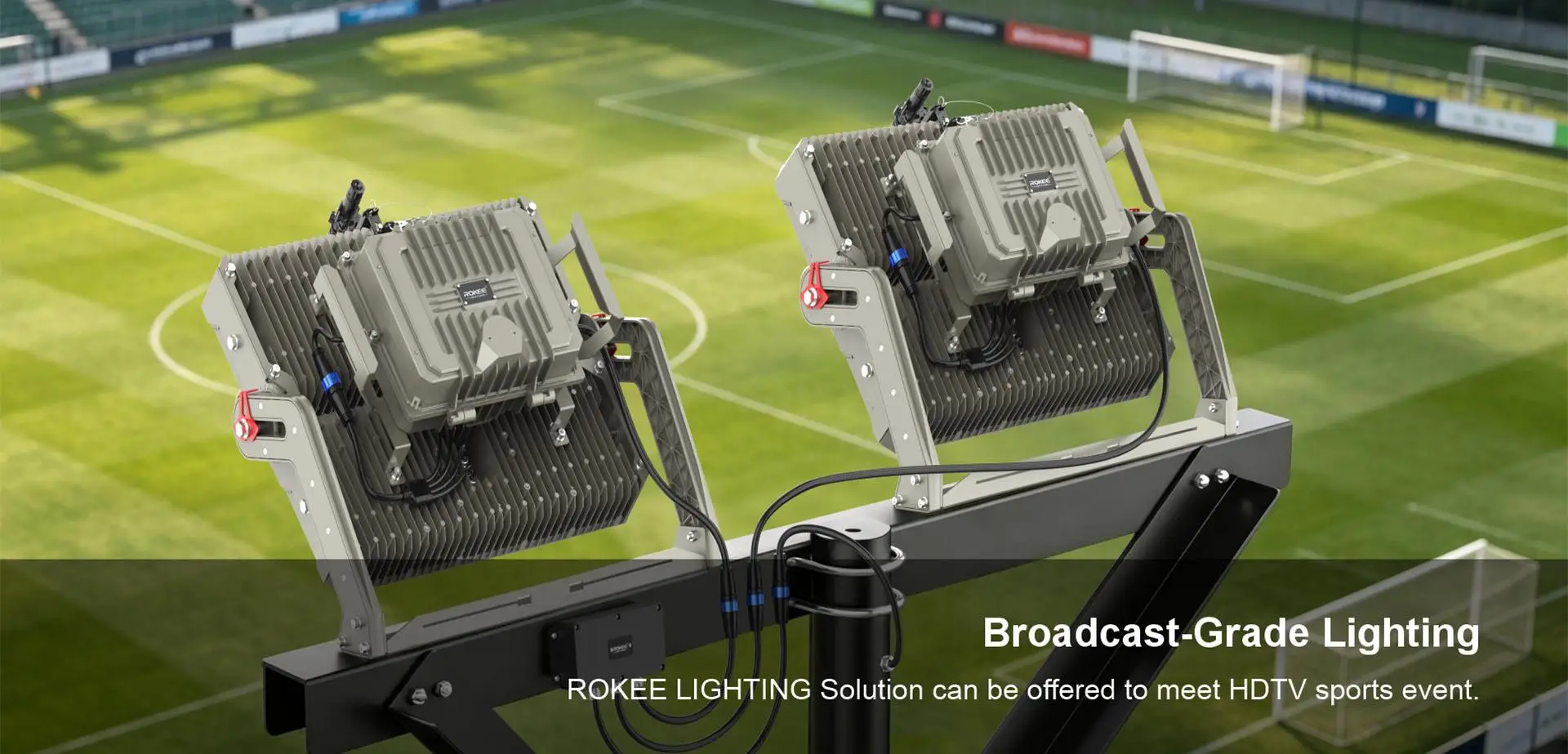

The G23 1800W RGBW LED stadium light is designed for multifunctional venues that require powerful white illumination and programmable color effects. Typical applications include professional stadiums, football fields, athletics tracks, outdoor arenas, opening ceremonies, concerts, victory celebrations and other large sports or entertainment events.
Explore more LED sports lights, review our sports lighting projects, or contact ROKEE for photometric planning and a project quotation.
