Description

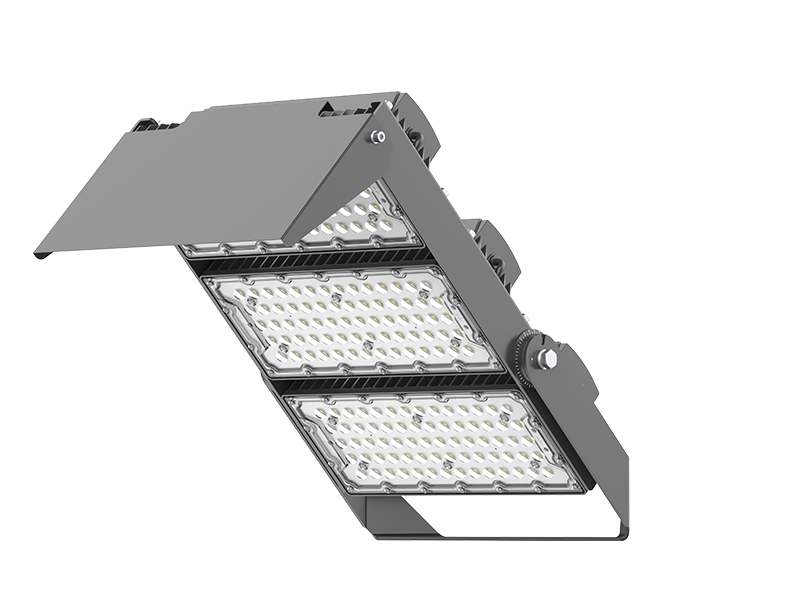

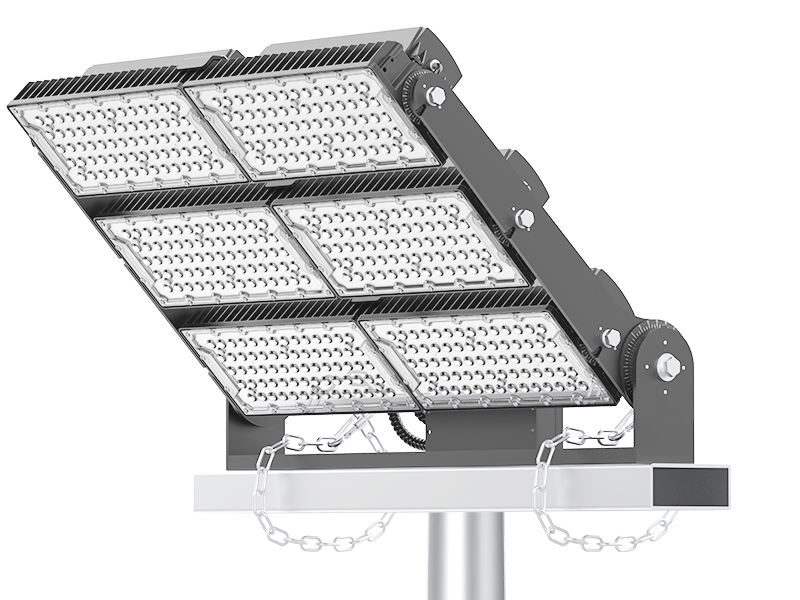

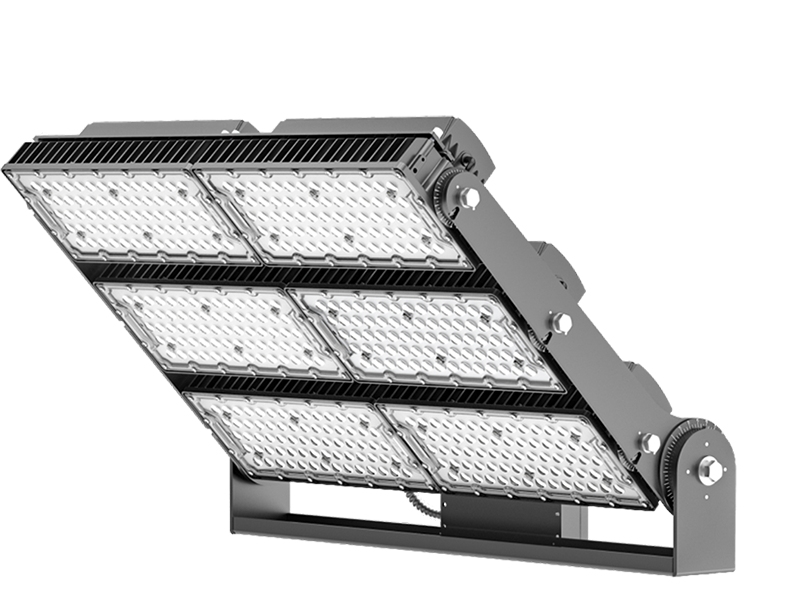

This 1500W multi‑module G20‑series LED sports flood light comes with built‑in 10KV SPD (20KV optional), serving as an excellent replacement for traditional HID stadium lights. It provides symmetrical and asymmetrical beam angles (20°/30°/60°/90°/100*60°), supporting flexible light layout for football pitches, baseball fields, tennis courts and multi‑sport venues. Its electrophoresis powder‑coated housing offers strong outdoor corrosion resistance. The visor suppresses spill light and reduces glare to protect athletes’ eyesight, while scale‑mark brackets help installers complete fast angle calibration for high‑mast mounting.

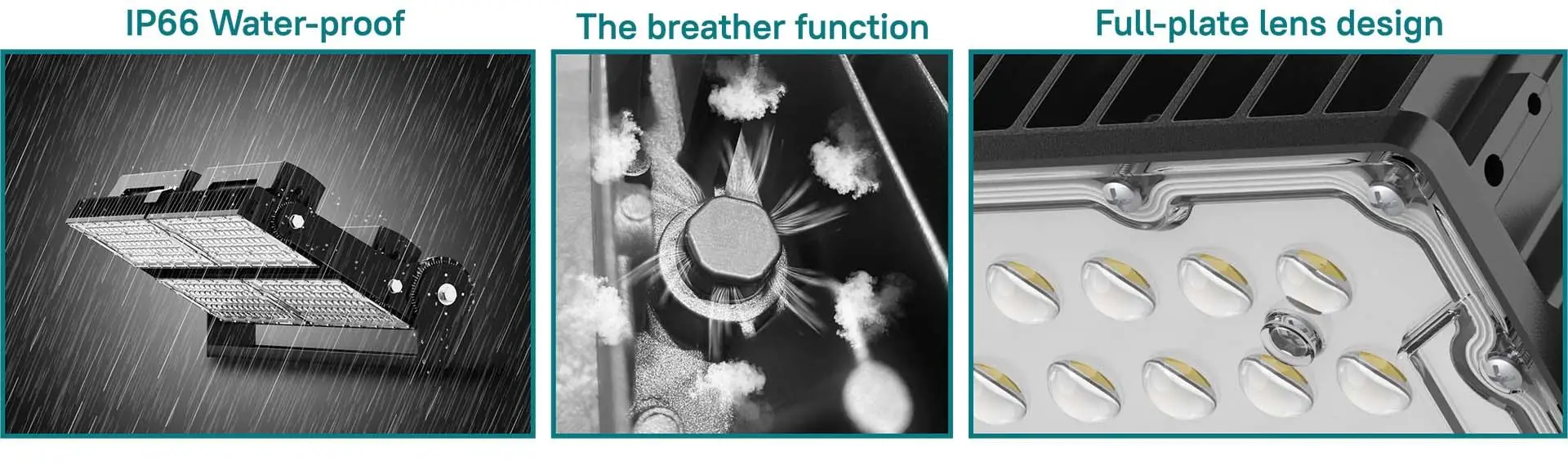

Boasting 160 lm/W high efficiency, the G20 series greatly lowers operating energy costs. Multiple control options are available: ON/OFF, 0‑10V, DALI, DMX‑RDM and ZigBee for venue‑wide lighting management. Rated IP66 waterproof and IK10 impact resistance, it works reliably in harsh weather, with over 100,000‑hour lifespan and 5‑year warranty.
Before deciding power and quantity, match lux, uniformity and CRI to your venue’s competition grade. Read our stadium lighting lux & uniformity guide to understand Class I / II / III sports‑lighting standards.

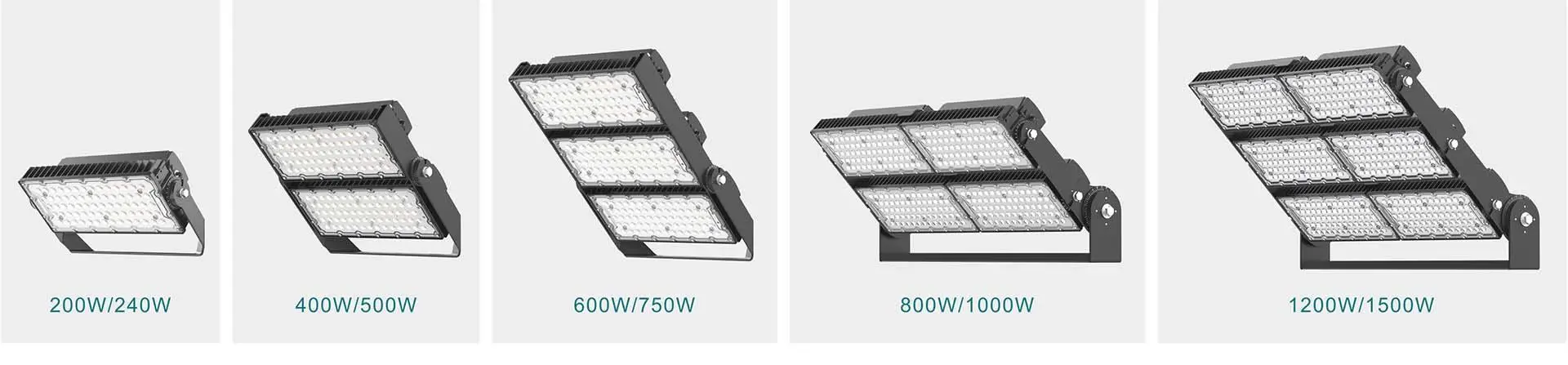

Available in 200W‑1500W power range. Send us your venue size, sport type and lighting class, and our team will offer free DIALux simulation and custom layout proposals.
Specifications
| Power: 200W/240W/400W/500W/600W/750W/800W/1000W/1200W/1500W | |
| Input Voltage: AC120~277V/277~480V 50/60Hz | Effi.: 160Lm/W |
| Beam Angle: 20°/30°/60°/90°/100*60° | PF.: >0.9 |
| CCT: 3000K/4000K/5000K/5700K | CRI:70/80/90 |
| Operating Temp: -40℃~+50℃ | Storage Temp: -40℃~+80℃ |
| SPD: 10KV(Standard) / 20KV(Optional) | Water-proof: IP66 |
| Impact Resistance Rating: IK10 | Warranty: 5 Years Warranty |
| Lifespan: >100,000H | Weight: 3.30kg(7.28lbs) |
