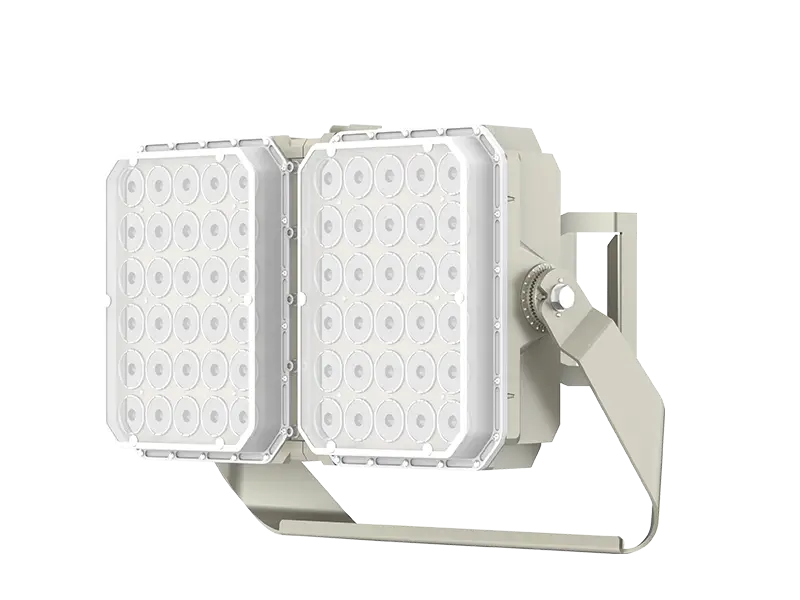

G24 5 Degree LED Stadium Light Features

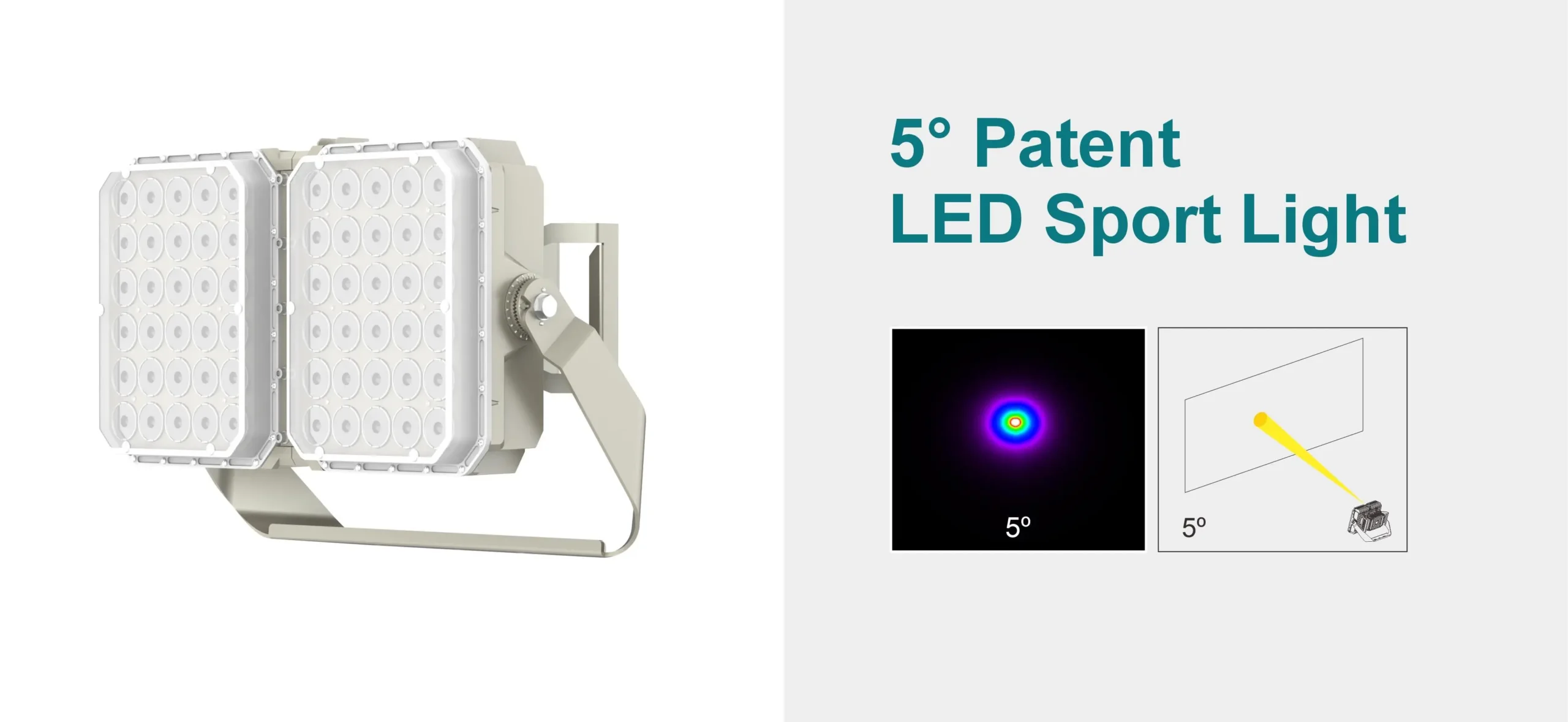

The ROKEE G24 5 degree LED stadium light is engineered for high-mast sports lighting, providing precise long-distance illumination, reduced spill light and improved glare control for professional venues. Selected 300W and 600W configurations are available with a 5° ultra-narrow beam, while 10°, 15°, 30° and 60° optics support a wider range of stadium and large-area lighting requirements.

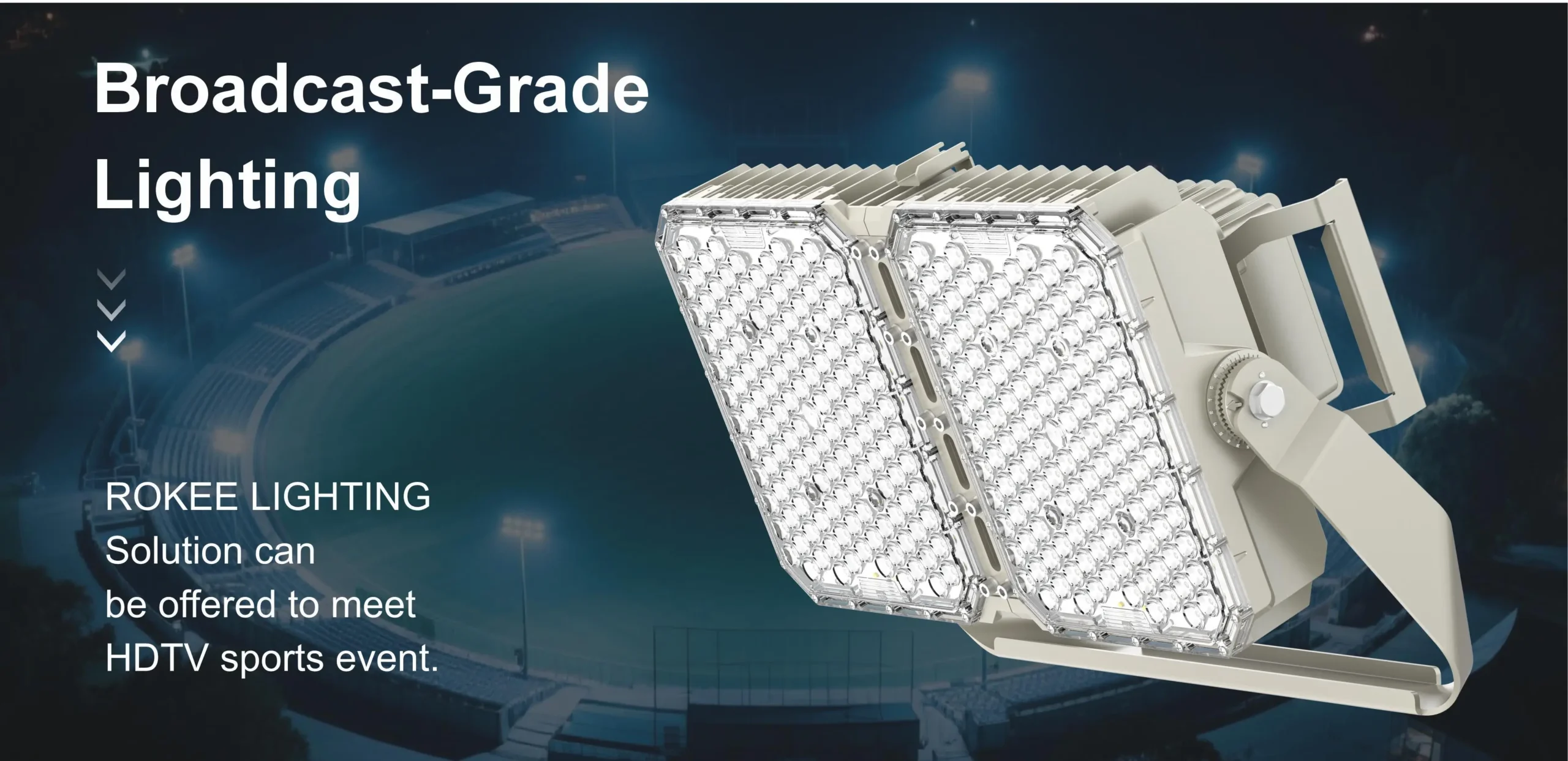

The G24 Series is available in power ratings from 300W to 1600W. LED package options include Philips, OSRAM, CREE and Bridgelux, with driver options from Inventronics, Mean Well, Philips and Tridonic. Available color temperatures include 3000K, 4000K, 5000K and 5700K, with CRI 70, 80 or 90 options for different project and broadcast requirements.

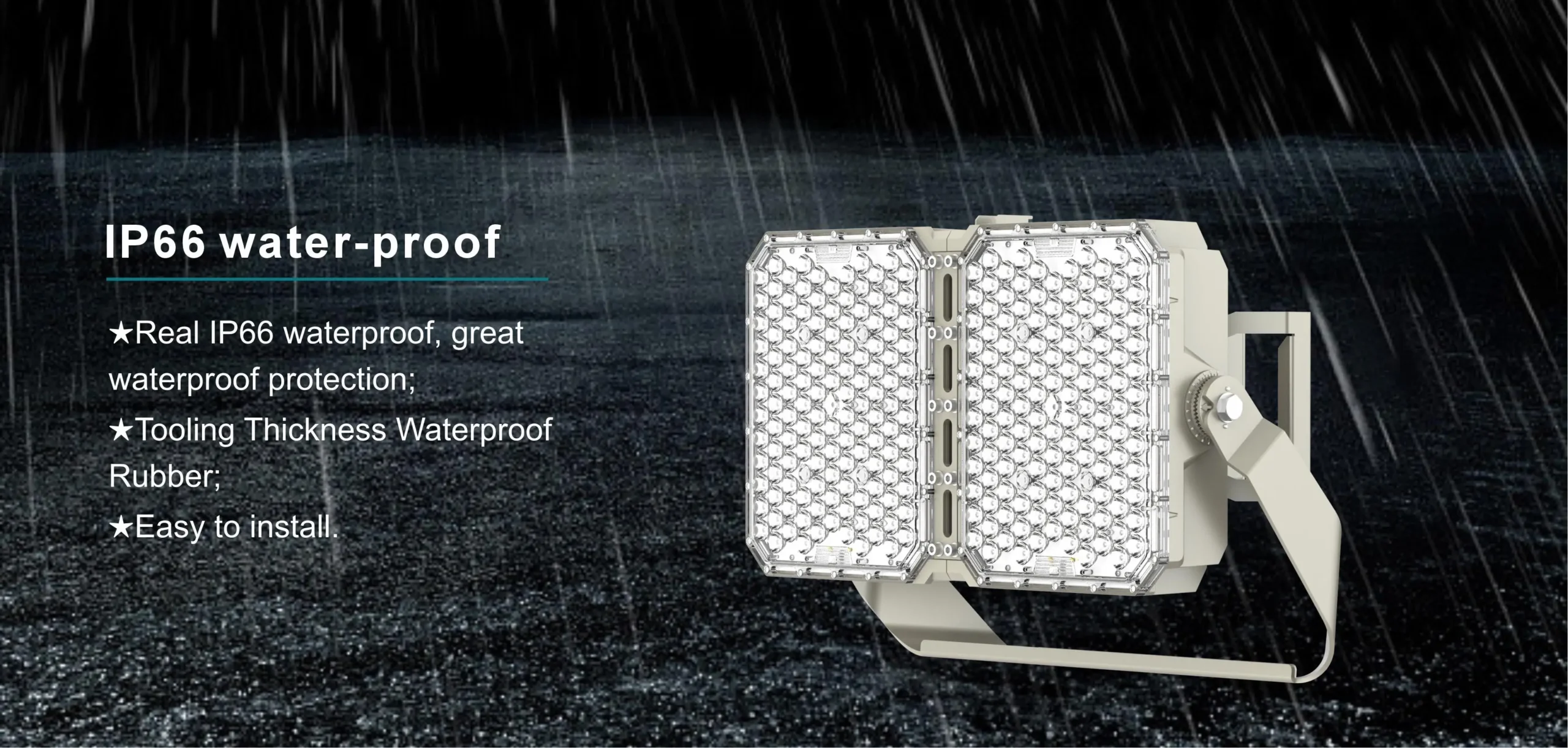

With a power factor above 0.9, THD of 15% or less, IK10 impact resistance and an IP66 weatherproof enclosure, the luminaire is designed for demanding outdoor environments. Standard 10 kV surge protection is included, with an optional 20 kV configuration available for projects requiring additional electrical protection.
The die-cast aluminum housing provides efficient thermal management across an operating temperature range of -40°C to +50°C. The luminaire offers an L70 rated lifetime of more than 100,000 hours and supports ON/OFF, 0–10V, DALI, DMX512 and ZigBee control options. Multiple mounting configurations and a five-year warranty make the G24 Series suitable for stadiums, athletics fields, training grounds and other large outdoor sports venues.
The G24 5 degree LED stadium light is a practical solution for high-mast venues requiring precise long-range illumination, controlled spill light and flexible lighting controls.
Specifications
| Power: 300W/400W/500W/600W/800W/1000W/1200W/1600W | Input Voltage: AC120~277V/277~480V 50/60Hz |
| Beam Angle:10°/15°/30°/60°/ 5°（Only @300W/600W） | Effi.: 130Im/W/ 150Im/W/ 170Im/W |
| CCT: 3000K/4000K/5000K/5700K | PF.: >0.9 |
| SDCM: ≤5 | CRI: 70 / 80 / 90 |
| Operating Temp: -40℃~+50℃ | Storage Temp: -40℃~+80℃ |
| Impact Resistance Rating: IK10 | Water-proof: IP66 |
| Protection against electric shock: Class I | THD: ≤15% |

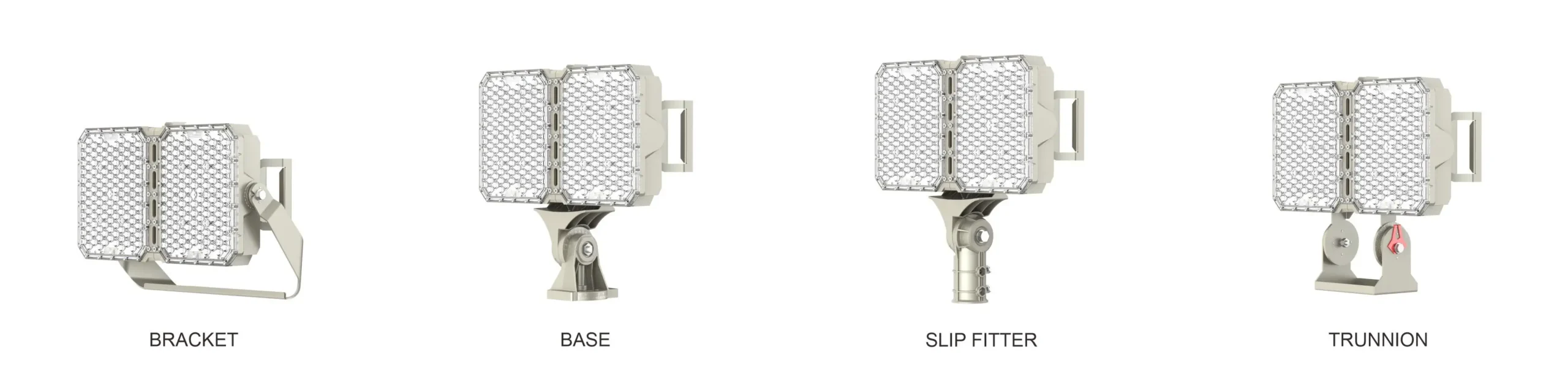

| Mounting Type: P1-Yoke / P2-Base / P3 -Slip fitter / P4-Trunnion | SPD: 10KV(Standard) / 20KV(Optional) |
| Lifespan: >100,000H | Warranty: 5 Years Warranty |
| Control Optional: ON/OFF / 0-10V / DALI / DMX 512 / ZigBee | Weight: 15.70kg(34.61lbs) |
Explore more LED sports lights, review our sports lighting projects, or contact ROKEE for photometric planning and a project quotation.
