Description

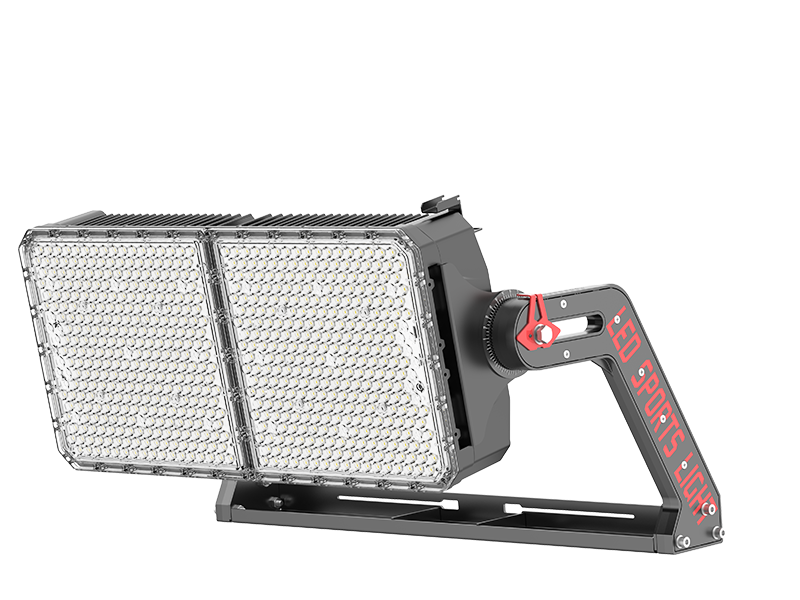

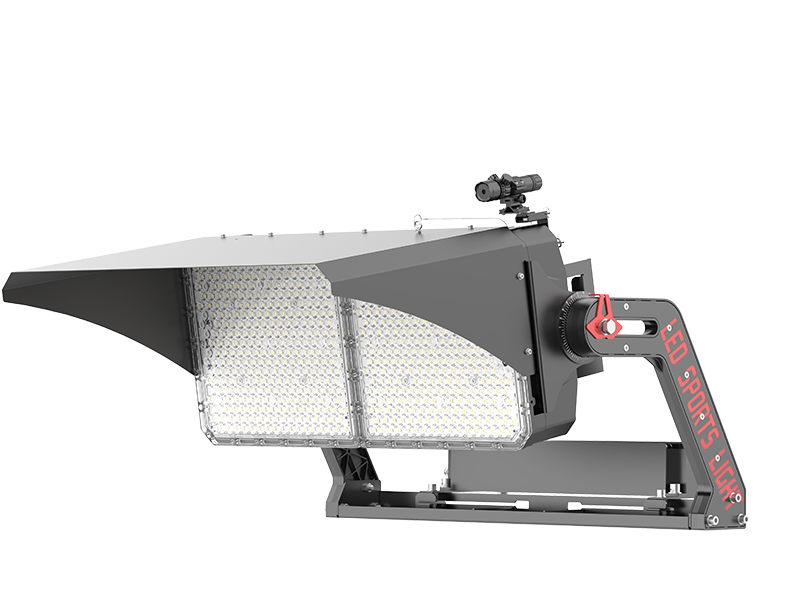

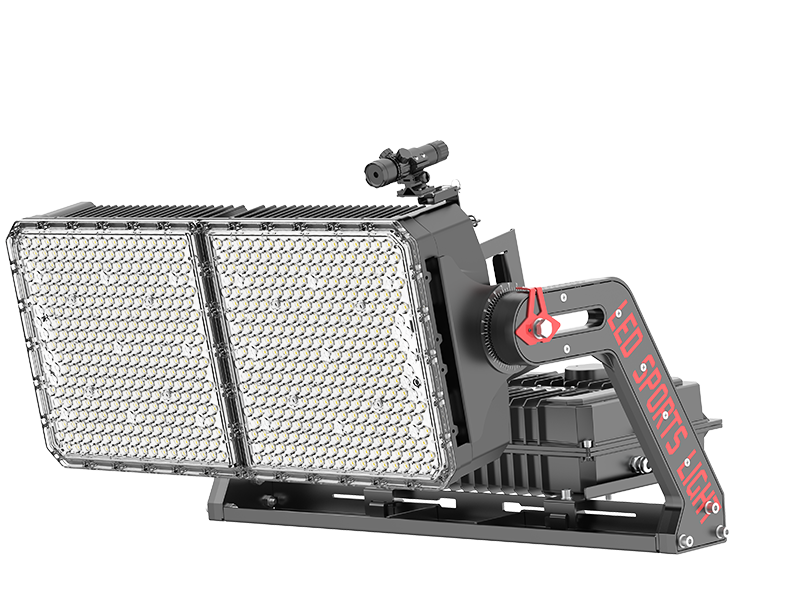

G15(B) 4800W modular high‑mast LED stadium light is built for large‑scale tournament‑grade sports venues, delivering ultra‑high output for professional broadcast‑level stadium projects. It adopts modular optical design with multiple beam‑angle options, perfectly matching large football fields, athletics tracks and multi‑sport complex venues.
Constructed with electrophoresis outdoor powder‑paint die‑cast aluminum housing, this fixture features reliable 10KV‑20KV SPD surge protection. It supports multi‑protocol smart control including 0‑10V, DALI and DMX‑RDM for FIFA TV HD broadcast football stadiums. With IP66 waterproof and IK10 impact‑resistance rating, it copes with harsh outdoor conditions, boasting over 100,000‑hour lifespan and 5‑year factory warranty.
For large stadium projects, you must match lux, uniformity and CRI parameters to meet Class I broadcast‑grade standards. Please read our professional stadium lighting selection reference to clarify international sports‑lighting requirements for major competition venues.
If you provide your stadium dimension, sport type and target lighting class, our engineering team will deliver free DIALux illuminance simulation and customized high‑mast lighting layout solutions.
Specifications
| Power: 1200W/1400W/1500W/1600W/2400W/2800W/3000W/3200W/3600W/4200W/4500W/4800W | |
| Input Voltage: AC120~277V/277~480V 50/60Hz | Effi.: 160Lm/W |
| Beam Angle: 10°/15°/30°/60° | PF.: >0.9 |
| CCT: 3000K/4000K/5000K/5700K | CRI: 70/80/90 |
| Operating Temp: -40℃~+50℃ | Storage Temp: -40℃~+80℃ |
| SPD: 10KV(Standard) / 20KV(Optional) | Water-proof: IP66 |
| Impact Resistance Rating: IK10 | Warranty: 5 Years Warranty |
| Lifespan: >100,000H | Weight: 33.00kg(72.75lbs) |
| Control Optional: ON/OFF / 0-10V / DALI / DMX 512 / ZigBee | |
